WAX Documents

Simple wax document

<wax:wax xmlns:wax="http://www.morphis.org/wax" version="1.0">
    <wax:doc>
        <wax:block>
            <wax:p>Hello World</wax:p>
        </wax:block>
    </wax:doc>
</wax:wax>

This example is not quite large enough to fully show the structure of complex WAX documents but it is a good starting point. First notice that wax:block holds the content of the document and secondly that wax:doc holds the wax:blocks. This is an important note in constructing WAX documents; one wax:doc contains many wax:blocks, but in most cases only one wax:block is seen on the client's browser at one time. (Some clients can see all of the wax:blocks at once, but most do not.)

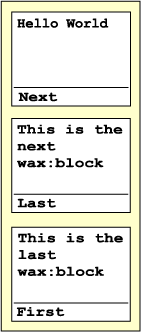

Figure 1 represents a large WAX document and how the content would be display on most clients. Each subsection represents one wax:block and the larger section represents the wax:doc that contains each of the wax:blocks. The WAX source for this example is below.

Fig 1

<wax:wax xmlns:wax="http://www.morphis.org/wax" version="1.0">
    <wax:doc>
        <wax:block id="first">
            <wax:button keytype="accept" type="go" label="Next"
                        href="#next"/>
            <wax:p>Hello World</wax:p>
        </wax:block>
        <wax:block id="next">
            <wax:button keytype="accept" type="go" label="Last"
                        href="#last"/>
            <wax:p>This is the next wax:block</wax:p>
        </wax:block>
        <wax:block id="last">
            <wax:button keytype="accept" type="go" label="First"
                        href="#first"/>
            <wax:p>This is the last wax:block</wax:p>
        </wax:block>
    </wax:doc>
</wax:wax>

But wait there's more, wax:docs can contain more than just wax:blocks, there is also wax:form, wax:formblock, and wax:animation. The first two will be discussed in more detail in the Forms section. wax:formblocks can do everything the regular wax:blocks can do, plus a little more, specifically they can contain form elements wax:binarychoice, wax:choice, and wax:entry. wax:animation as its name suggests, allows for the creation of animated frames. This means wax:formblocks, wax:blocks, and wax:animations are all at level in the WAX document structure sense.
